Tungsten Heat Sinks vs Copper: Thermal and Mechanical Comparison

Introduction

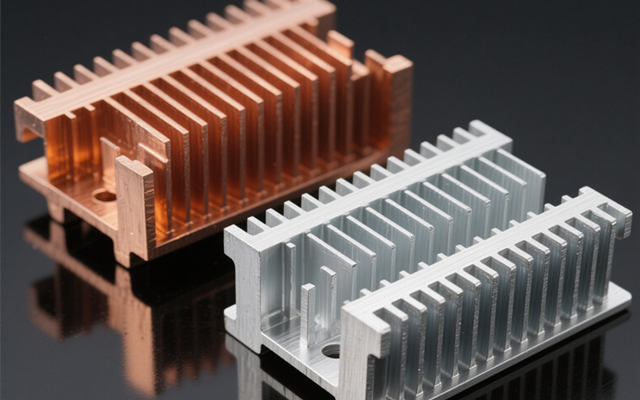

Tungsten heat sinks and copper heat sinks are not straightforward competitors. They serve overlapping but distinct domains, and choosing between them requires more than a simple thermal conductivity comparison. Copper has dominated thermal management for decades with good reason: it is highly conductive, relatively easy to fabricate, and available at a cost that makes it the rational default across a wide range of applications. But default choices have boundaries, and at those boundaries, the mechanical and thermomechanical properties of tungsten heat sinks produce outcomes that copper cannot reliably deliver. Understanding where those boundaries lie is the starting point for a thermal management decision that holds up across the full service life of the assembly.

Thermal Conductivity: Where Copper Leads

On thermal conductivity, copper holds a clear advantage:

• Pure copper conducts heat at approximately 400 watts per metre-kelvin at room temperature
• Pure tungsten conducts at approximately 173 watts per metre-kelvin under the same conditions
• Copper moves heat roughly twice as efficiently as tungsten at ambient conditions

For applications where the primary requirement is moving heat away from a source rapidly, and where the mechanical interface is not subject to significant cyclic thermal loading, copper’s conductivity advantage is real and consequential. However, copper’s conductivity decreases with increasing temperature more rapidly than tungsten’s, narrowing the gap at elevated operating temperatures. For applications where junction temperatures are consistently high, the effective conductivity advantage of copper over tungsten heat sinks is smaller than room-temperature data suggests.

Coefficient of Thermal Expansion: Where Tungsten Leads

The property that most consistently drives engineers toward tungsten heat sinks is thermal expansion behaviour:

• Copper expands at approximately 17 parts per million per degree Celsius
• Silicon expands at approximately 2.6 parts per million per degree Celsius
• Gallium arsenide and gallium nitride expand at similarly low rates
• Tungsten expands at approximately 4.5 parts per million per degree Celsius, closely matched to semiconductor substrates

The mismatch between copper’s thermal expansion and that of semiconductor substrates generates thermomechanical stress at the bonded interface every time the assembly heats and cools. Over thousands of thermal cycles, that stress accumulates as fatigue damage in the solder or braze layer, producing progressive delamination, increasing thermal resistance, and ultimately device failure.

Tungsten heat sinks bonded to semiconductor devices experience substantially lower interfacial stress under thermal cycling, extending bond lifetime and device reliability in ways that copper cannot replicate regardless of geometry optimisation. This is the core mechanical argument for tungsten heat sinks in power electronics, RF device packaging, and semiconductor fabrication equipment. In high-cycle applications where bond integrity is the primary failure mode, the expansion argument for tungsten is not marginal. It is decisive.

Tungsten-Copper Composites: Bridging the Gap

Tungsten-copper composites, produced by infiltrating a sintered tungsten skeleton with copper, offer tailored intermediate properties:

• Thermal conductivities between 180 and 250 watts per metre-kelvin, substantially higher than pure tungsten
• Thermal expansion coefficients between 6 and 9 parts per million per degree Celsius, well below copper’s 17 parts per million
• Retained high-temperature stability and radiation resistance, with improved machinability relative to pure tungsten

For applications where pure tungsten’s conductivity is insufficient but copper’s thermal expansion is problematic, tungsten heat sink composites occupy a well-characterised middle ground. Singapore’s precision manufacturing sector has developed production capability for tungsten-copper composites through powder metallurgy and metal injection moulding routes, serving semiconductor and advanced electronics industries whose device performance depends on this combination of properties.

Density, Fabrication, and Cost

Two further considerations consistently shape the choice between tungsten heat sinks and copper.

Density presents a practical constraint in mass-sensitive applications. Copper’s density of 8.9 grams per cubic centimetre is less than half that of tungsten at 19.3 grams per cubic centimetre. In satellite power conditioning and space-qualified RF electronics, where launch mass carries a direct cost, tungsten’s weight penalty can be a limiting factor even when its thermomechanical properties are well matched to the application. Tungsten-copper composites with higher copper content reduce density while retaining expansion advantages, offering a partial resolution for mass-sensitive programmes.

Fabrication complexity and cost favour copper substantially. Copper can be cast, rolled, extruded, and machined with standard industrial equipment at low cost. Tungsten’s high melting point precludes conventional casting, and its hardness demands specialised tooling and machining strategies. Tungsten heat sink production relies on powder metallurgy sintering followed by precision machining, or on metal injection moulding for complex geometries, both of which carry higher unit costs than equivalent copper components.

Conclusion

The comparison between tungsten heat sinks and copper resolves into a decision framework rather than a verdict. Where thermal conductivity is the dominant requirement and thermomechanical stress is manageable, copper is the rational choice. Where device reliability under cyclic thermal loading, matched expansion to semiconductor substrates, or performance at extreme operating temperatures are the governing criteria, tungsten heat sink deliver capabilities that copper cannot replicate. Selecting between them correctly is what separates thermal management designs that perform across their intended service life from those that do not.
